Maiores detalhes

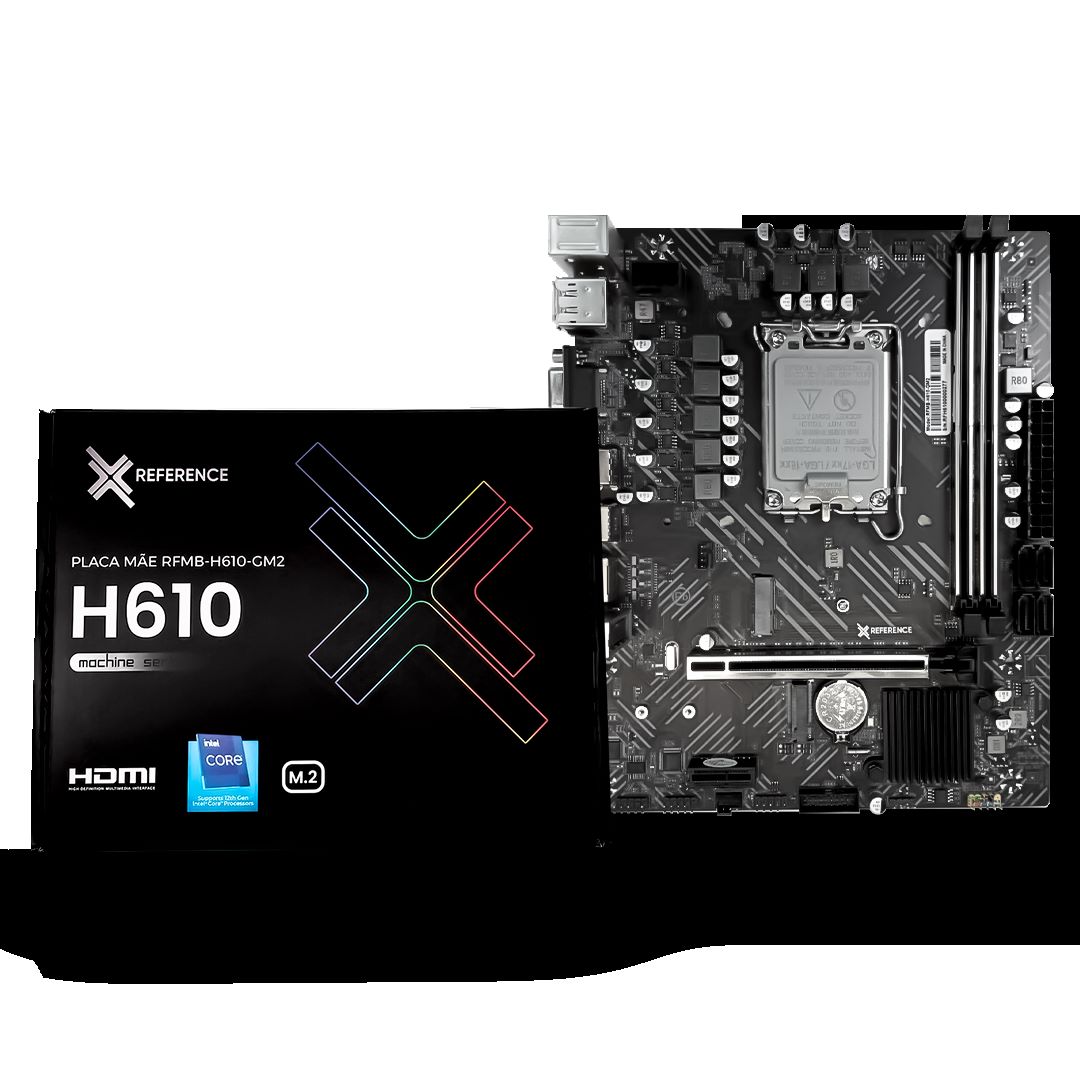

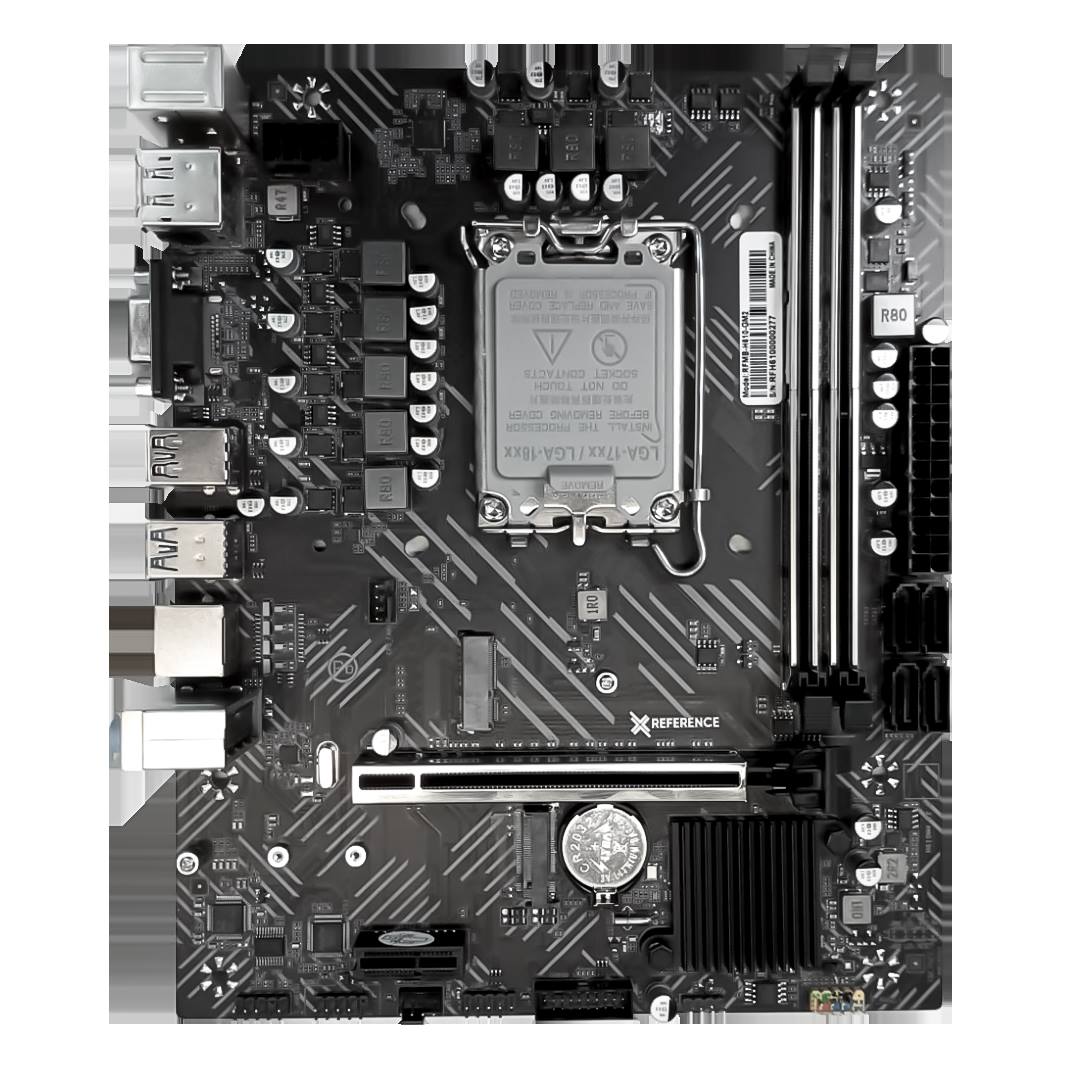

Placa Mãe Reference H610-GM2, Rede Gigabit, M.2, Chip H610, Intel LGA 1700, MATX, DDR4
Marca:
Reference
Modelo:
RFMB-H610-PRO-GM2
Chipset:
Intel H610
Suporte de memória:
Support Dual channel DDR4 2133/2400/2800 MEMORY (32GB*2=64GB Max)
Support XMP overclock
LAN:
Support Realtek® 10/100/1000 Mbps
Audio:
Chip integrated by Realtek® ALC662
Slot:
1 x PCI Express x16 Slot
1 x PCI Express x1 Slot
SATA:
4 x SATA port
Portas internas de E/S:
1.M.2 Port
1xmini PCIE for WIFI
1 x 24-pin ATX Power Connetor
1 x 8-pin ATX Power Connetor
2 x USB connector support additional 4 USB ports
1 x COM connector
1 x Front panel audio connector
Portas traseiras de E/S:
1 x System Panel connector
1 x PS/2 keyboard
1X DP (optional)
1 x VGA
1 x HDMI
2 x USB 2.0,2 x USB 3.0
1 x LAN(RJ45) Port
BIOS:
EFI BIOS
Form factor:
Micro ATX - 190*240 mm
Acessórios:
1 x Driver CD
1 x User Manual
1 x I/O Backboard
1 x SATA cable
